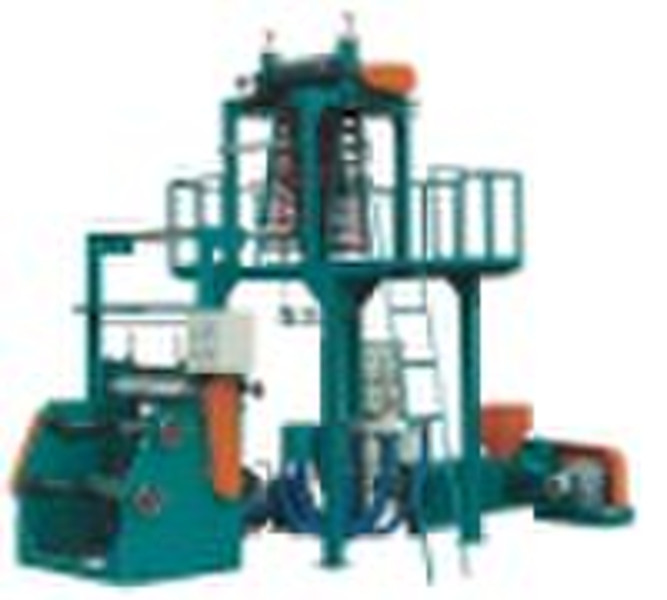

PRY-MA Rotary Machine Head Film-blowing Machine Se

Application: This machine is suitable for blowing and making various plastic films such as LDPE, HEPE and linear LLDPE film, which have been widely used for packing Liquid, printed and laminated products, industrial products and clothes and textiles, etc. Main technical variables TypePRY-M50APRY-M55APRY-M60ADiameter of Screw 50mm55mm60mmDraw Ratio of Screw28:128:128:1Rotational Speed of Screw10100r/min10100r/min10100r/minPower of main machine 40kg/h50kg/h65kg/hMax.Capacity 15Kw15Kw18.5KwSize of Mould Head 60mm90mm80mm160mm100mm 150mmSingle-side Thickness of Film0.0060.1mm0.0060.1mm0.0060.1mmMax.Folding Width600mm800mm1000mmTotal Power22Kw 25.7Kw29KwWeight of Machine 2100kg2300kg3000kgOverall DimensionL5500×W2000×H3800mmL6000×W2000×H4000mmL6000×W2200×H4000mm Performance and Features 1.Traction adopts speed regulator. 2.The main motor adopts adjustable-speed motor. (Frequency converter can be selected and equipped). 3.All the cylinder screws of the extruder are made of high-quality alloy steel through nitration and precise processing with the highest hardness and corrosion resistance. 4.The flatbed worktable makes operation easier. 5.The bubble-fixing ring device makes thin film even smoother and more uniform. 6.The rolling device adopts double split and double rolling, and its motive power adopts torque motor which can keep proper tension and make rolling neat and roll replacing easy.
